32-bit Enhanced Low-Power RISC-V MCU – CH32V203


Overview

The CH32V203 is an industrial-grade enhanced low-power general-purpose MCU based on 32-bit RISC-V core. The CH32V203 features high performance, and supports up to 144MHz system clock frequency. The operating power consumption can be as low as 45uA/MHz. CH32V203 integrates 2-channel USB interface which supports USB Host and USB Device functions. The CH32V203 provides 1-channel CAN interface (2.0B active), 2-channel OPA, 4 UARTs, 2 IICs, 12-bit ADC, 10-channel TouchKey and other peripheral resources. Several packages such as TSSOP20, QFN28 QFN48, LQFP32 and LQFP48 are available for users.

System Block Diagram

Features

  • Qingke V4B, up to 144MHz system clock frequency.
  • Single-cycle multiplication and hardware division.
  • 20KB SRAM, 64KB Flash.
  • Supply voltage: 2.5V/3.3V. GPIO unit is supplied independently.
  • Low-power modes: sleep/stop/standby.
  • Down to 44.65uA/MHz in Run mode.
  • Down to 17.90uA/MHz in Sleep mode.
  • Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD).
  • 2 x 18-channel general DMA controllers.
  • 2 amplifiers.
  • 10-channel 12-bit ADC, 10-channel TouchKey.
  • 4 timers.
  • One USB2.0 full-speed host/device interface.
  • One USB2.0 full-speed device interface.
  • 4 UARTs.
  • One CAN interface (2.0B active).
  • 2 IIC interfaces, 2 SPI interfaces.
  • 37 I/O ports, can be mapped to 16 external interrupts.
  • CRC calculation unit, 96-bit unique ID.
  • Serial 2-wire debug interface.
  • Packages: TSSOP20, QFN28, QFN48, LQFP32, LQFP48.

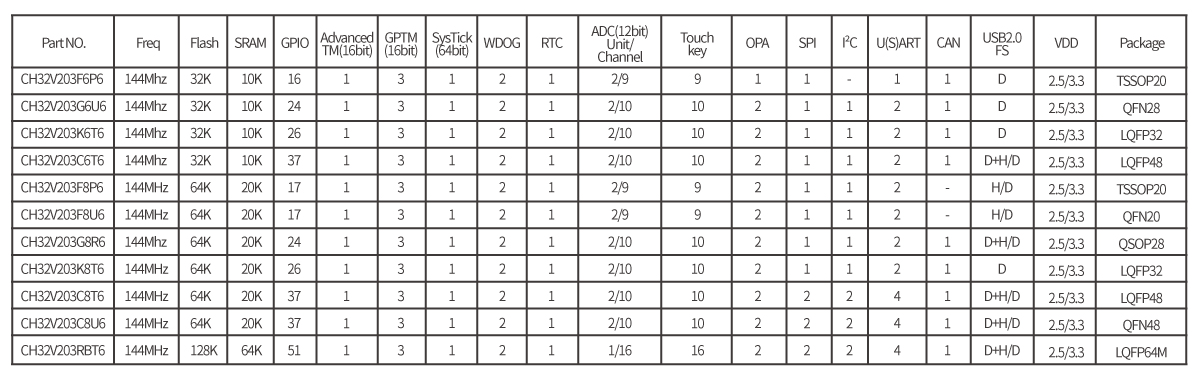

Product Selection Guide

Technical Resources

  1. Datasheet: CH32V20x_30xDS0.PDFCH32FV2x_V3xRM.PDF
  2. CH32V203EVT evaluation board manual and reference routines: CH32V20xEVT.ZIP
  3. Integrated development environment (IDE): MounRiver Studio(MRS)
