USB host interface chip:CH370


Introduction

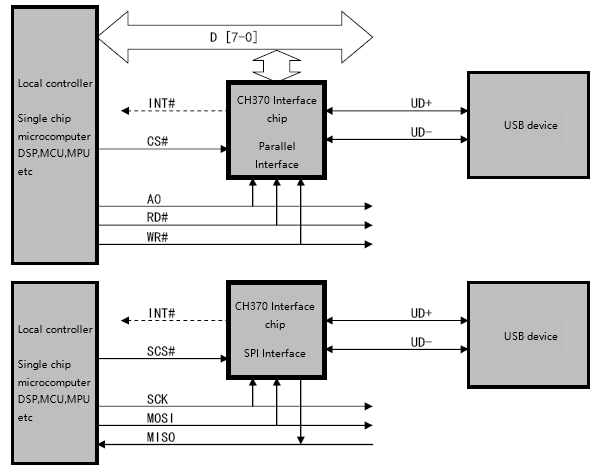

CH370 is a USB bus host interface chip that supports low-speed and full-speed control transfer and bulk transfer and interrupt transfer. It supports 8-bit parallel bus and 4-wire or 3-wire SPI serial bus with MCU/DSP/MPU controllers.

Features

  • Full-speed USB device interface, compatible with USB V2.0, plug and play, peripheral components only require crystals and capacitors;
  • Supports 1.5Mbps low speed and 12Mbps full speed USB communication, compatible with USB V2.0;
  • Supports control transfer, bulk transfer, and interrupt transfer for commonly used low-speed and full-speed USB devices;
  • Automatically detects the connection and disconnection of USB devices, providing interrupt notification for device connection and disconnection;
  • Built-in USB signal line impedance matching series resistor and USB host pull-down resistor;
  • Two MCU interfaces are available: 8-bit passive parallel interface with 5MB speed and SPI serial interface with 3MB/24MHz speed;
  • The SPI serial interface includes SPI chip select, serial clock, serial input and output, and the SPI output can be connected in parallel with the input;
  • The interrupt output pin is an optional connection that is active low and can be replaced by the interrupt flag bit in the Query Register;
  • Support 5V power supply voltage and 3.3V power supply voltage, built-in power supply power-on reset. The CH370V only supports a 3.3V supply voltage;
  • Available in SSOP-20 lead-free package , compatible with RoHS.
