Digital tube display driver chip CH450


Overview

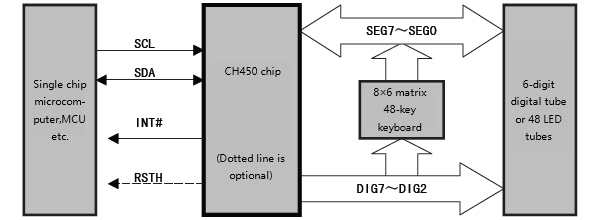

The CH450 is a digital tube display driver and a keyboard scan control chip. The CH450 has a built-in clock oscillating circuit that can dynamically drive a 6-bit digital tube or 48 LED. It can also perform 48-key keyboard scanning. The CH450 exchanges data with a single chip microcomputer through a 2-wire serial interface. It can also provide a power-on reset signal to the single chip microcomputer.

Features

  • Built-in display current drive stage, segment current is not less than 15mA, word current is not less than 80mA- Dynamic display scan control, direct drive 6-digit digital tube or 48 LED;
  • Dynamic display scan control, direct drive 6-digit digital tube or 48 LED;
  • Built-in 48-key keyboard controller based on 8×6 matrix keyboard scan;
  • Built-in debounce circuit with pull-down resistor for built-in button status input;
  • Provides an active low keyboard interrupt and provides a button release flag which can be used to query button presses and release;
  • High-speed 2-wire serial interface with clock speeds from 0 to 2MHz, compatible with two-wire I2C bus, saving pins;
  • Built-in clock oscillating circuit, no need to provide external clock or external oscillating components, more anti-interference;
  • Built-in power-on reset, and can provide an active-high reset output for the single chip microcomputer;
  • Supports low-power sleep, saves power, can be woken up by a button or wake up by a command operation;
  • Available in DIP-20 and SOP-20 lead-free packages, compatible with RoHS, functions and pins are partially compatible with the CH455 chip.

relation files

file name file content
CH452DS1.PDF CH452 datasheet. CH452 can be used for 64 LEDs or 8×8 segment digital tube drive and 64-key keyboard scanning control, simplifying the workload of MCU.
CH451DS1.PDF CH451 datasheet. CH451 can be used for 8×8 segment digital tube drive and 64-key keyboard scanning control, cascading 10MHz high-speed 4-wire interface to simplify the workload of MCU.
CH423DS1.PDF CH423 datasheet. A remote I/O expander with 2-wire serial interface, used for 16 digital tube display or I/O expansion applications through two wires. The input terminal is a two-wire interface compatible with I2C, and the output terminal is an 8-bit bidirectional input/output port and a 16-bit high-current output port.
CH422DS1.PDF CH422 datasheet. Remote I/O expander chip of two-wire serial interface, used for display of 4 digital tubes and I/O expansion application. The input is a two-wire interface compatible with I2C, and the output is an 8-bit bidirectional I/O port and 4-bit large-current output port.
CH453DS1.PDF CH453 datasheet. CH453 can be used for 128 LEDs or 16×8 segment digital tube drive and 64-key keyboard scanning control.
